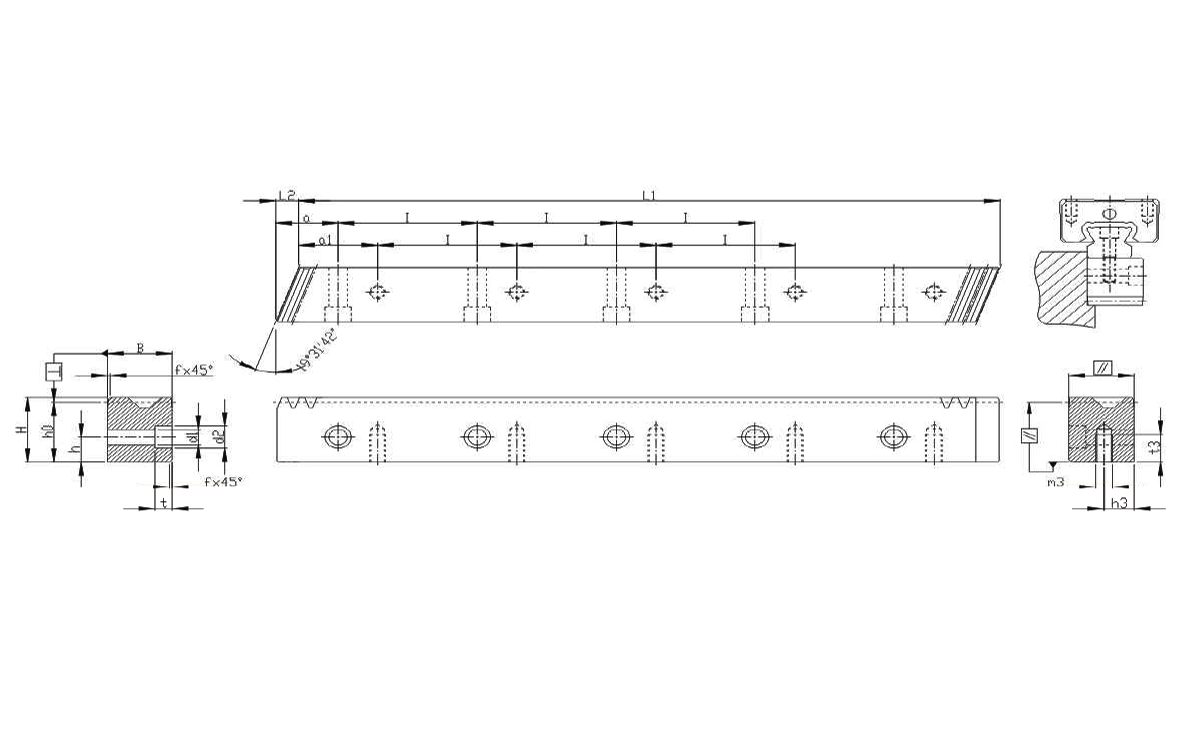

| 模数 | Pt | L1 | L2 | 齿数 | B | H | ho | f | a | l | 孔数 | h | d1 | d2 | t | al | m3 | h3 | t3 | fp2 | fp3 | 订单代码 |
| 2 | 6.66668 | 1920 | 7.1 | 288 | 20 | 19.50 | 17.50 | 1 | 10 | 60 | 32 | 7.5 | 6 | 9.5 | 6 | 30 | M4 | 7.5 | 8.0 | 0.018 | 0.074 | 0208R200C10A2 |
| 2 | 6.66668 | 1920 | 8.9 | 288 | 25 | 24.50 | 22.50 | 1 | 10 | 60 | 32 | 10.0 | 7 | 11.0 | 7 | 30 | M5 | 10.0 | 11.0 | 0.018 | 0.074 | 0208R100CS0A2 |
| 3 | 10.00002 | 1920 | 10.6 | 192 | 30 | 29.75 | 26.75 | 2 | 10 | 60 | 32 | 11.5 | 10 | 15.0 | 9 | 30 | M6 | 11.5 | 13.5 | 0.019 | 0.081 | 0308R100C10A2 |
| 4 | 13.33335 | 1920 | 14.2 | 144 | 40 | 39.75 | 35.75 | 2 | 20 | 80 | 24 | 14.0 | 12 | 18.0 | 12 | 40 | M8 | 14.0 | 16.0 | 0.021 | 0.088 | 0408R100C10A2 |
