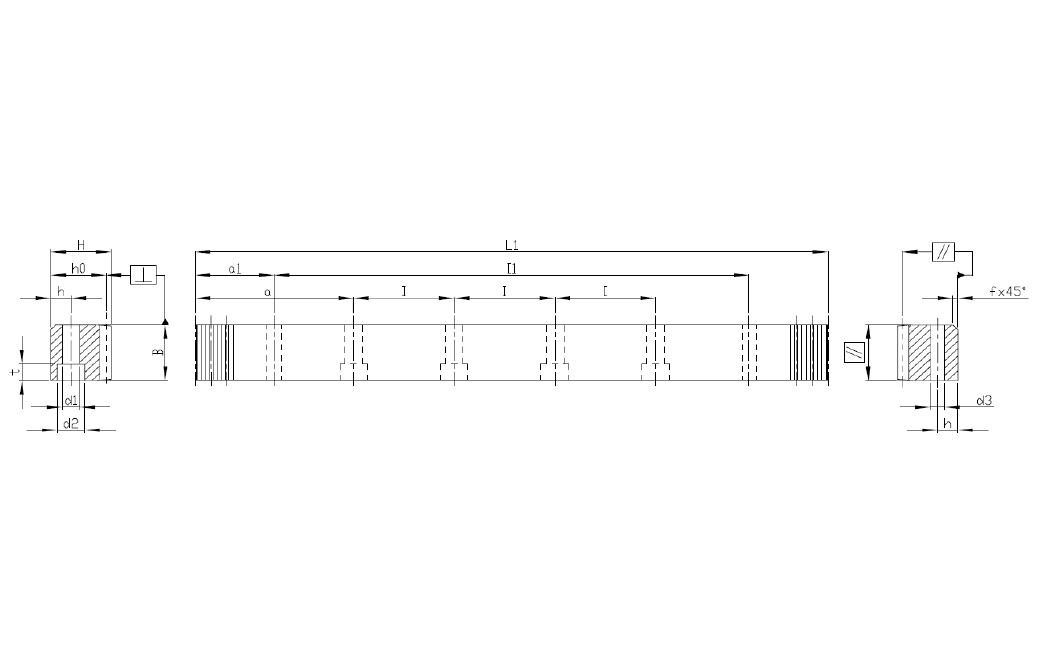

| 模数 | Pt | L1 | 齿数 | B | H | ho | f | a | l | 孔数 | h | d1 | d2 | t | al | ll | d3 | fp2 | fp3 | 订单代码 |
| 5 | 15.70796 | 1005.31 | 64 | 49 | 39 | 34 | 3 | 62.83 | 125.66 | 8 | 12 | 14 | 20 | 13 | 30.10 | 945.11 | 11.7 | 0.005 | 0.02 | 05041100C10 |
| 6 | 18.84956 | 1017.88 | 54 | 59 | 49 | 43 | 3 | 63.62 | 127.23 | 8 | 16 | 18 | 26 | 17 | 31.40 | 955.08 | 15.7 | 0.005 | 0.02 | 06041100C10 |
| 8 | 25.13274 | 1005.31 | 40 | 79 | 79 | 71 | 3 | 62.83 | 125.66 | 8 | 25 | 22 | 33 | 21 | 26.60 | 952.11 | 19.7 | 0.006 | 0.022 | 08041100C10 |
| 10 | 31.41593 | 1005.31 | 32 | 99 | 99 | 89 | 3 | 62.83 | 125.66 | 8 | 32 | 33 | 48 | 32 | 125.66 | 753.99 | 19.7 | 0.006 | 0.022 | 10041100C10 |
| 12 | 37.69911 | 1017.88 | 27 | 120 | 120 | 108 | 3 | 63.62 | 127.23 | 8 | 40 | 39 | 58 | 38 | 127.23 | 763.42 | 19.7 | 0.007 | 0.023 | 12041100C10 |
