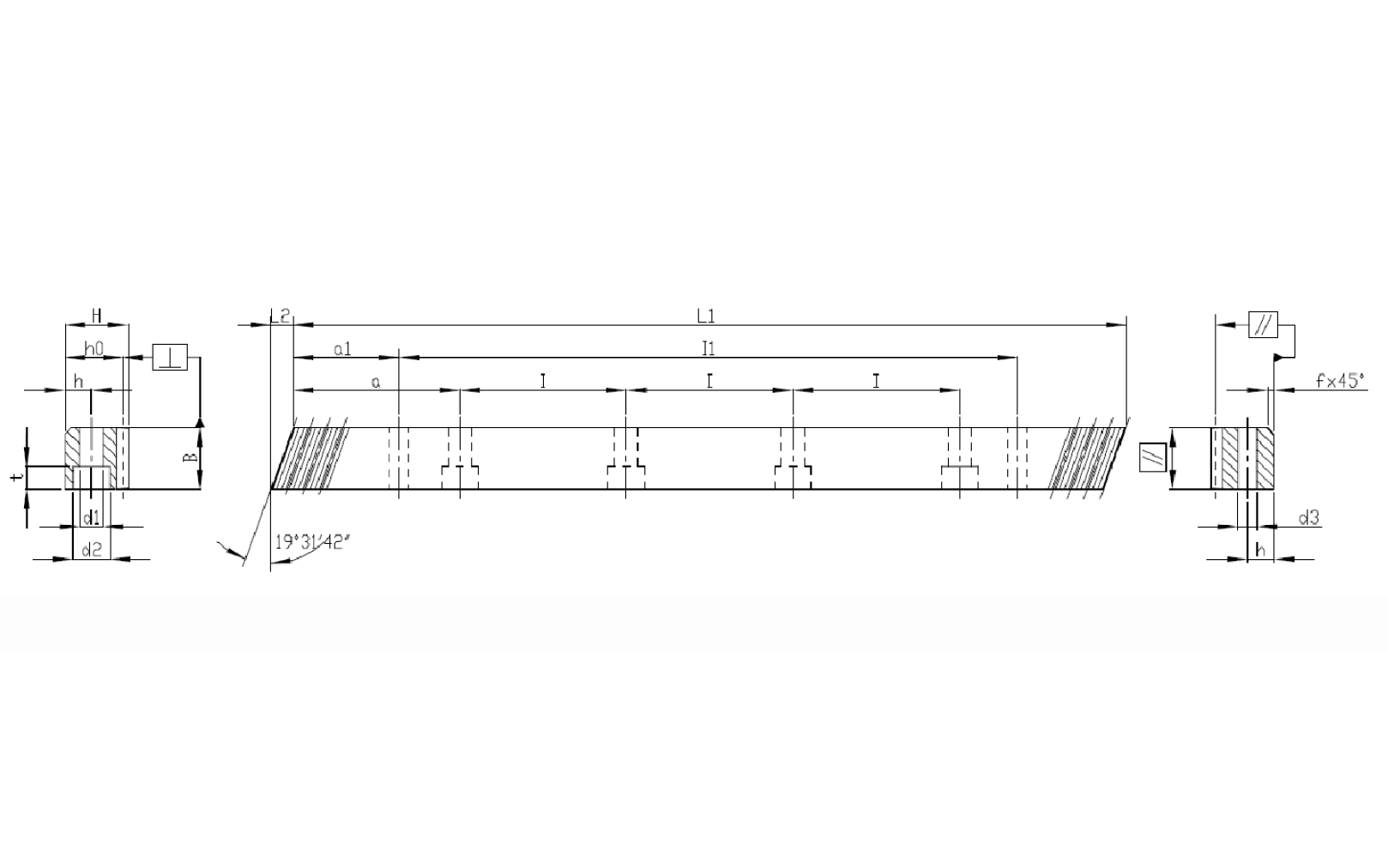

| 模数 | Pt | L1 | L2 | 齿数 | B | H | ho | f | a | l | 孔数 | h | d1 | d2 | t | al | ll | d3 | fp2 | fp3 | 订单代码 |
| 2 | 6.66668 | 500 | 8.5 | 75 | 24 | 24 | 22.0 | 2 | 62.5 | 125 | 4 | 8 | 7 | 11 | 7 | 31.7 | 436.6 | 5.7 | 0.006 | 0.021 | 0205R050M10 |
| 2 | 6.66668 | 1000 | 8.5 | 150 | 24 | 24 | 22.0 | 2 | 62.5 | 125 | 8 | 8 | 7 | 11 | 7 | 31.7 | 936.6 | 5.7 | 0.006 | 0.024 | 0205R100M10 |
| 2 | 6.66668 | 1500 | 8.5 | 225 | 24 | 24 | 22.0 | 2 | 62.5 | 125 | 12 | 8 | 7 | 11 | 7 | 31.7 | 1436.6 | 5.7 | 0.006 | 0.024 | 0205R150M10 |
| 2 | 6.66668 | 2000 | 8.5 | 300 | 24 | 24 | 22.0 | 2 | 62.5 | 125 | 16 | 8 | 7 | 11 | 7 | 31.7 | 1936.6 | 5.7 | 0.007 | 0.027 | 0205R200M10 |
| 2.5 | 8.33335 | 500 | 10.3 | 60 | 29 | 29 | 26.5 | 2 | 62.5 | 125 | 4 | 9 | 10 | 15 | 9 | 35.0 | 430.0 | 7.7 | 0.006 | 0.023 | 2J05R50M10 |
| 2.5 | 8.33335 | 1000 | 10.3 | 120 | 29 | 29 | 26.5 | 2 | 62.5 | 125 | 8 | 9 | 10 | 15 | 9 | 35.0 | 930.0 | 7.7 | 0.006 | 0.026 | 2J05R100M10 |
| 2.5 | 8.33335 | 1500 | 10.3 | 180 | 29 | 29 | 26.5 | 2 | 62.5 | 125 | 12 | 9 | 10 | 15 | 9 | 35.0 | 1430.0 | 7.7 | 0.006 | 0.026 | 2J05R200M10 |
| 2.5 | 8.33335 | 2000 | 10.3 | 240 | 29 | 29 | 26.5 | 2 | 62.5 | 125 | 16 | 9 | 10 | 15 | 9 | 35.0 | 1930.0 | 7.7 | 0.006 | 0.029 | 0305R050M10 |
| 3 | 10.00002 | 500 | 10.3 | 50 | 29 | 29 | 26.0 | 2 | 62.5 | 125 | 4 | 9 | 10 | 15 | 9 | 35.0 | 430.0 | 7.7 | 0.007 | 0.023 | 0305R100M10 |
| 3 | 10.00002 | 1000 | 10.3 | 100 | 29 | 29 | 26.0 | 2 | 62.5 | 125 | 8 | 9 | 10 | 15 | 9 | 35.0 | 930.0 | 7.7 | 0.006 | 0.026 | 0305R150M10 |
| 3 | 10.00002 | 1500 | 10.3 | 150 | 29 | 29 | 26.0 | 2 | 62.5 | 125 | 12 | 9 | 10 | 15 | 9 | 35.0 | 1430.0 | 7.7 | 0.006 | 0.026 | 0305R150M10 |
| 3 | 10.00002 | 2000 | 10.3 | 200 | 29 | 29 | 26.0 | 2 | 62.5 | 125 | 16 | 9 | 10 | 15 | 9 | 35.0 | 1930.0 | 7.7 | 0.007 | 0.030 | 0305R200M10 |
