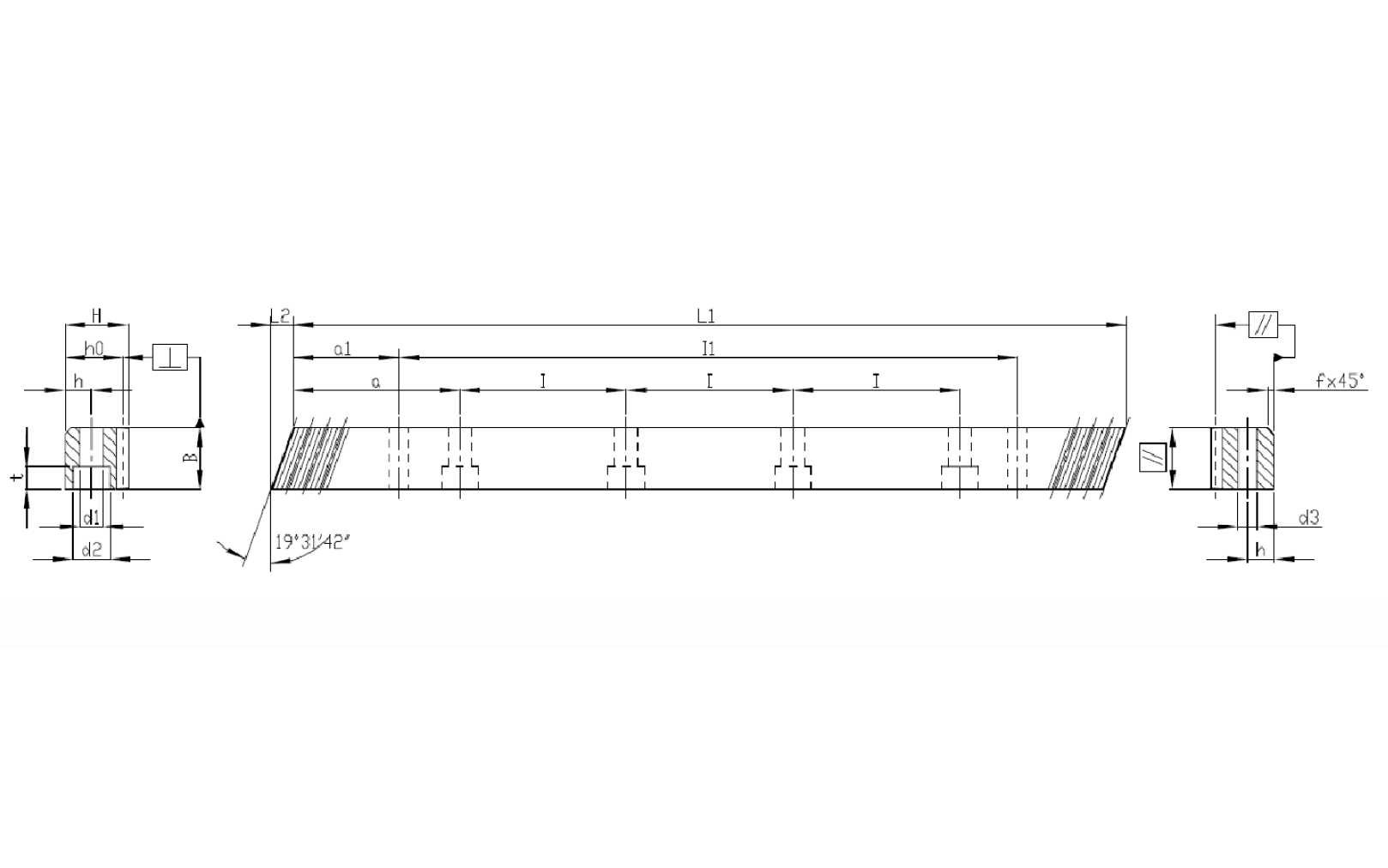

| 模数 | Pt | L1 | L2 | 齿数 | B | H | ho | f | a | l | 孔数 | h | d1 | d2 | t | al | ll | d3 | fp2 | fp3 | 订单代码 |
| 2 | 6.66668 | 1000 | 8.9 | 150 | 25 | 24 | 22 | 2 | 62.5 | 125 | 8 | 8 | 7 | 11 | 7 | 31.7 | 936.6 | 5.7 | 0.016 | 0.066 | 028H100Q10 |
| 2 | 6.66668 | 2000 | 8.9 | 300 | 25 | 24 | 22 | 2 | 62.5 | 125 | 16 | 8 | 7 | 11 | 7 | 31.7 | 1936.6 | 5.7 | 0.018 | 0.074 | 028HR200Q10 |
| 3 | 10.00002 | 1000 | 10.6 | 100 | 30 | 29 | 26 | 2 | 62.5 | 125 | 8 | 9 | 10 | 15 | 9 | 35 | 930 | 7.7 | 0.018 | 0.072 | 038HR100Q10 |
| 3 | 10.00002 | 2000 | 10.6 | 200 | 30 | 29 | 26 | 2 | 62.5 | 125 | 16 | 9 | 10 | 15 | 9 | 35 | 1930 | 7.7 | 0.019 | 0.081 | 038HQ200Q10 |
| 4 | 13.33335 | 1000 | 14.2 | 75 | 40 | 35 | 35 | 3 | 62.5 | 125 | 8 | 12 | 10 | 15 | 9 | 33.3 | 933.4 | 7.7 | 0.019 | 0.078 | 048HR100Q10 |
| 4 | 13.33335 | 2000 | 14.2 | 150 | 40 | 35 | 35 | 3 | 62.5 | 125 | 16 | 12 | 10 | 15 | 9 | 33.3 | 1933.4 | 7.7 | 0.021 | 0.088 | 048HR200Q10 |
