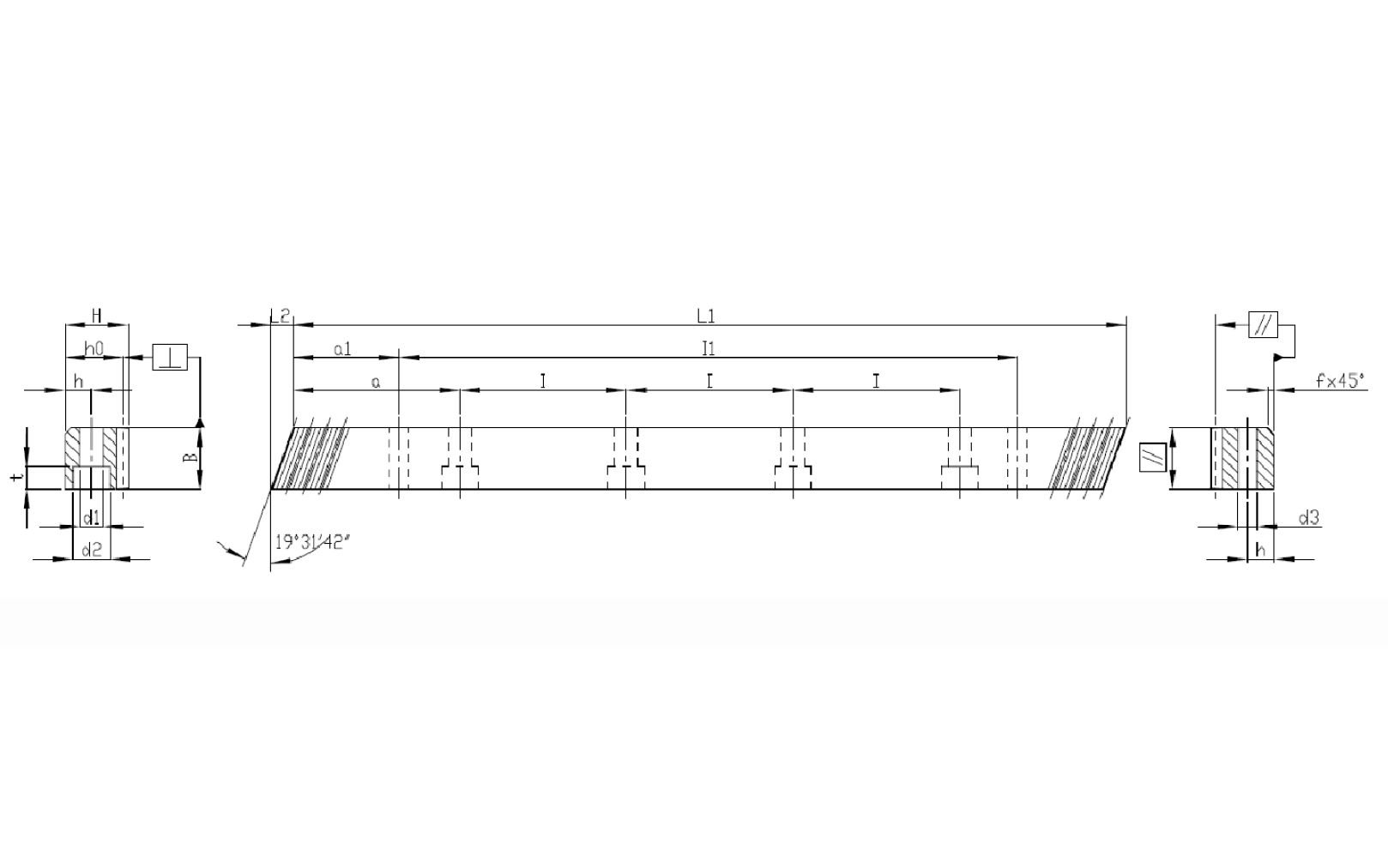

| 模数 | Pt | L1 | L2 | 齿数 | B | H | ho | f | a | l | 孔数 | h | d1 | d2 | t | al | ll | d3 | fp2 | fp3 | 订单代码 |
| 2 | 6.66668 | 1000 | 8.5 | 150 | 24 | 24 | 22 | 2 | 62.5 | 125 | 8 | 9 | 10 | 15 | 9 | 31.7 | 936.6 | 7.7 | 0.006 | 0.024 | 025HR100M10 |
| 3 | 10.00002 | 1000 | 10.3 | 100 | 29 | 29 | 26 | 2 | 62.5 | 125 | 8 | 10 | 12 | 17.5 | 11 | 27.5 | 945.0 | 11.7 | 0.006 | 0.026 | 035HR100M10 |
| 4 | 13.33335 | 1000 | 13.8 | 75 | 39 | 39 | 35 | 3 | 62.5 | 120 | 8 | 13 | 16 | 23 | 15 | 30.0 | 940.0 | 15.7 | 0.007 | 0.028 | 045HR100M10 |
| 5 | 16.66669 | 1000 | 17.4 | 60 | 49 | 49 | 44 | 3 | 62.5 | 125 | 8 | 15 | 18 | 26 | 17 | 34.5 | 931.0 | 15.7 | 0.007 | 0.028 | 055HR100M10 |
| 6 | 20.00003 | 1000 | 20.9 | 50 | 59 | 59 | 53 | 3 | 62.5 | 125 | 8 | 20 | 22 | 33 | 21 | 97.5 | 805.0 | 19.7 | 0.007 | 0.028 | 065HR100M10 |
| 8 | 26.66671 | 960 | 28 | 36 | 79 | 79 | 71 | 3 | 60.0 | 120 | 8 | 25 | 26 | 39 | 25 | 120.0 | 720.0 | 19.7 | 0.008 | 0.031 | 085HR100MH |
| 10 | 33.33339 | 1000 | 35.1 | 30 | 99 | 99 | 89 | 3 | 40.0 | 125 | 8 | 32 | 39 | 58 | 38 | 102.5 | 750.0 | 19.7 | 0.008 | 0.031 | 105HR100M10 |
