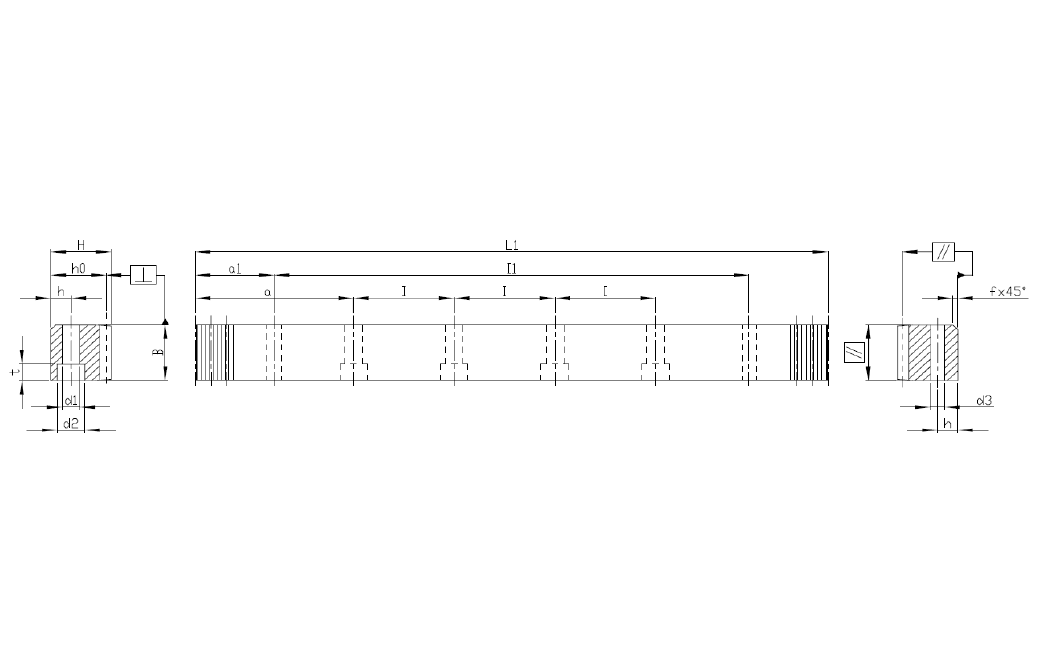

| 模数 | Pt | L1 | 齿数 | B | H | ho | f | a | l | 孔数 | h | d1 | d2 | t | al | ll | d3 | fp2 | fp3 | 订单代码 |
| 2 | 6.28319 | 1005.31 | 160 | 24 | 24 | 22 | 2 | 62.83 | 125.66 | 8 | 9 | 10 | 15 | 9 | 31.30 | 942.70 | 7.7 | 0.006 | 0.024 | 025H1100M10 |
| 3 | 9.42478 | 1017.88 | 108 | 29 | 29 | 26 | 2 | 63.62 | 127.23 | 8 | 10 | 12 | 17.5 | 11 | 28.60 | 960.60 | 11.7 | 0.006 | 0.026 | 035H1100M10 |
| 4 | 12.56637 | 1005.31 | 80 | 39 | 39 | 35 | 3 | 62.83 | 125.66 | 8 | 13 | 16 | 23 | 15 | 30.30 | 944.70 | 15.7 | 0.007 | 0.028 | 045H1100M10 |
| 5 | 15.70796 | 1005.31 | 64 | 49 | 49 | 44 | 3 | 62.83 | 125.66 | 8 | 15 | 18 | 26 | 17 | 34.80 | 935.70 | 15.7 | 0.007 | 0.028 | 055H1100M10 |
| 6 | 18.84956 | 1017.88 | 54 | 59 | 59 | 53 | 3 | 63.62 | 127.23 | 8 | 20 | 22 | 33 | 21 | 98.60 | 820.60 | 19.7 | 0.007 | 0.028 | 065H1100M10 |
| 8 | 25.13274 | 1005.31 | 40 | 79 | 79 | 71 | 3 | 62.83 | 125.66 | 8 | 25 | 26 | 39 | 25 | 26.60 | 952.11 | 19.7 | 0.008 | 0.031 | 085H1100M10 |
| 10 | 31.41593 | 1005.31 | 32 | 99 | 99 | 89 | 3 | 62.83 | 125.66 | 8 | 32 | 39 | 58 | 38 | 125.66 | 753.99 | 19.7 | 0.008 | 0.031 | 105H1100M10 |
