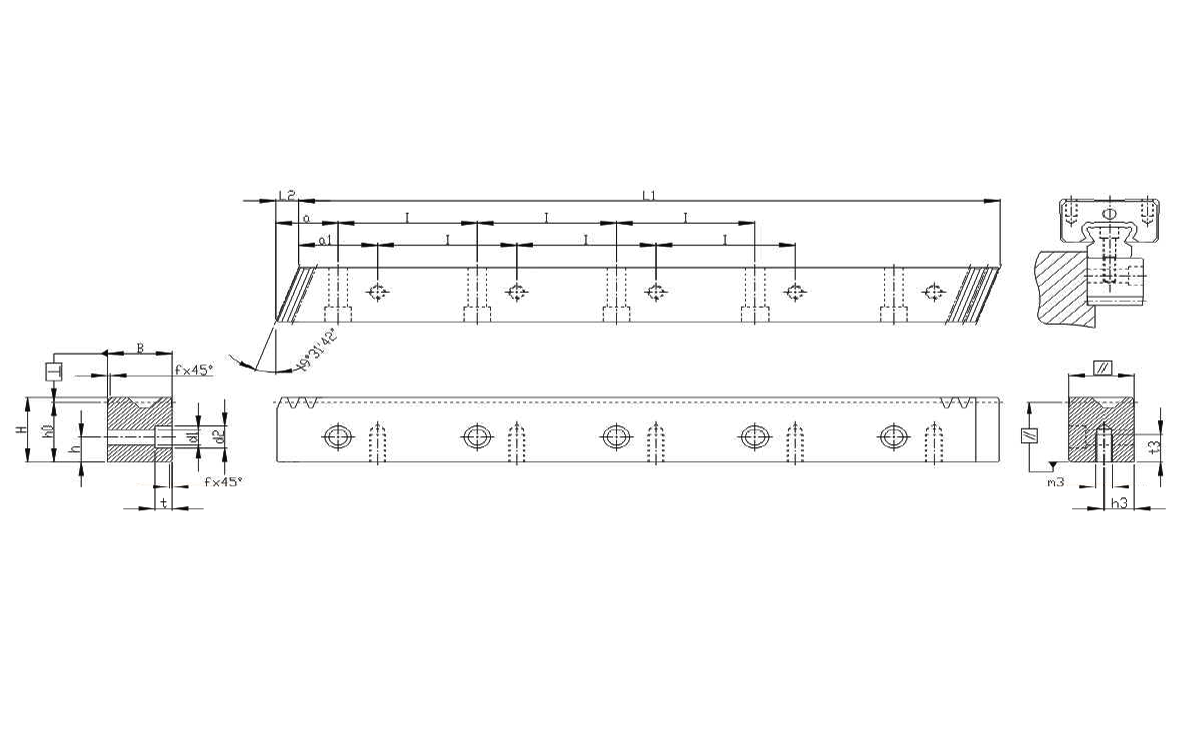

| 模数 | Pt | L1 | L2 | 齿数 | B | H | ho | f | a | l | 孔数 | h | d1 | d2 | t | al | m3 | h3 | fp2 | fp3 | 订单代码 |
| 2 | 6.66668 | 960 | 6.7 | 144 | 19 | 19.5 | 17.50 | 1 | 10.0 | 60 | 16 | 7.5 | 6 | 9.5 | 6 | 30 | M4 | 7.5 | 0.008 | 0.034 | 0206R100C10A2 |
| 2 | 6.66668 | 960 | 8.5 | 144 | 24 | 24.5 | 22.50 | 1 | 10.0 | 60 | 16 | 10.0 | 7 | 11.0 | 7 | 30 | M5 | 10.0 | 0.008 | 0.034 | 0206R100CS0A2 |
| 3 | 10.00002 | 960 | 10.3 | 96 | 29 | 29.75 | 26.75 | 2 | 10.0 | 60 | 16 | 11.5 | 10 | 15.0 | 9 | 30 | M6 | 11.5 | 0.009 | 0.037 | 0306R100C10A2 |
| 4 | 13.33335 | 960 | 13.8 | 72 | 39 | 39.75 | 35.75 | 2 | 20.0 | 80 | 12 | 14.0 | 12 | 18.0 | 12 | 40 | M8 | 14.0 | 0.010 | 0.040 | 0406R100C10A2 |
| 4 | 13.33335 | 960 | 13.8 | 72 | 39 | 48.78 | 44.75 | 2 | 20.0 | 80 | 12 | 17.0 | 12 | 18.0 | 12 | 40 | M8 | 17.0 | 0.010 | 0.040 | 0406R100CS0A2 |
| 4 | 13.33335 | 8480 | 17.4 | 63 | 49 | 58.00 | 54.00 | 2 | 30.0 | 105 | 8 | 22.5 | 14 | 20.0 | 13 | 60 | M12 | 22.5 | 0.009 | 0.034 | 0406R084CS0A2 |
