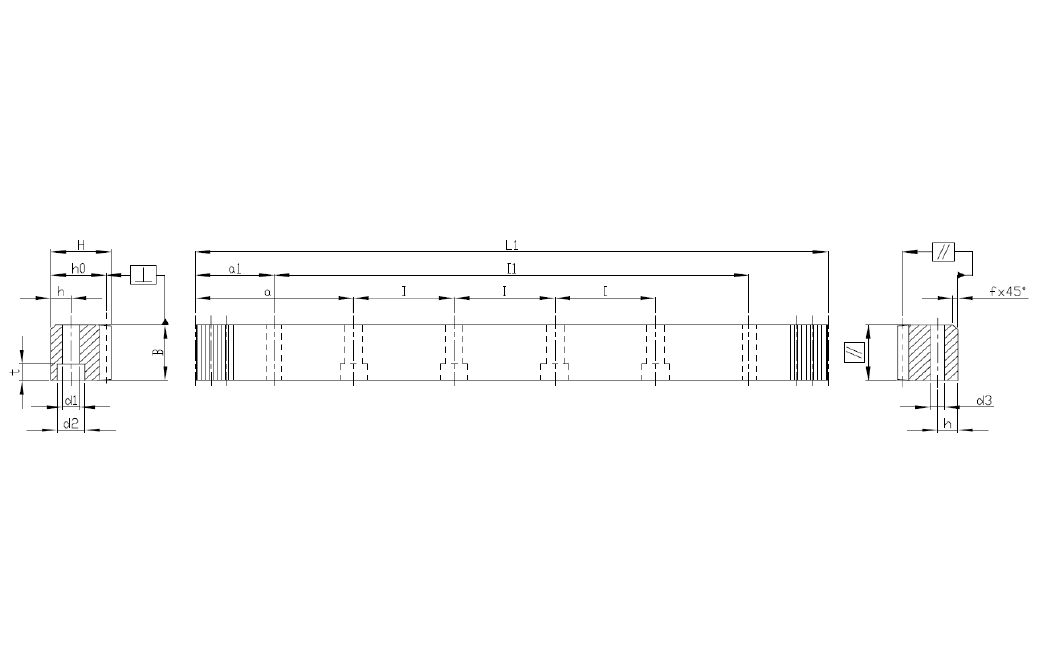

| 模数 | Pt | L1 | 齿数 | B | H | ho | f | a | l | 孔数 | h | d1 | d2 | t | al | ll | d3 | fp2 | fp3 | 订单代码 |
| 1 | 3.14159 | 999.03 | 318 | 15 | 15 | 14.0 | 2 | 62.44 | 124.88 | 8 | 6 | 5 | 8 | 5 | 31.30 | 936.43 | 5.7 | 0.037 | 0.065 | 01101100c10 |
| 1 | 3.14159 | 1998.05 | 636 | 15 | 15 | 14.0 | 2 | 62.44 | 124.88 | 16 | 6 | 5 | 8 | 5 | 31.30 | 1935.45 | 5.7 | 0.037 | 0.074 | 01101200c10 |
| 1.5 | 4.71239 | 999.03 | 212 | 17 | 17 | 15.5 | 2 | 62.44 | 124.88 | 8 | 6 | 6 | 10 | 6 | 31.30 | 936.43 | 5.7 | 0.037 | 0.066 | 1J101100C10 |
| 1.5 | 4.71239 | 1998.05 | 424 | 17 | 17 | 15.5 | 2 | 62.44 | 124.88 | 16 | 6 | 6 | 10 | 6 | 31.30 | 1935.45 | 5.7 | 0.041 | 0.074 | 1J101200C10 |
| 2 | 6.28319 | 1005.31 | 160 | 26 | 24 | 22.0 | 2 | 62.83 | 125.66 | 8 | 8 | 7 | 11 | 7 | 31.30 | 942.71 | 5.7 | 0.037 | 0.066 | 02101100C10 |
| 2 | 6.28319 | 2010.62 | 320 | 26 | 24 | 22.0 | 2 | 62.83 | 125.66 | 16 | 8 | 7 | 11 | 7 | 31.30 | 1948.02 | 5.7 | 0.041 | 0.074 | 02101200C10 |
| 3 | 9.42478 | 1017.88 | 108 | 31 | 29 | 26.0 | 2 | 63.62 | 127.23 | 8 | 9 | 10 | 15 | 9 | 34.40 | 949.08 | 7.7 | 0.039 | 0.072 | 03101100C10 |
| 3 | 9.42478 | 2035.75 | 216 | 31 | 29 | 26.0 | 2 | 63.62 | 127.23 | 16 | 9 | 10 | 15 | 9 | 34.40 | 1966.95 | 7.7 | 0.043 | 0.081 | 03101200C10 |
| 4 | 12.56637 | 1005.31 | 80 | 41 | 39 | 35.0 | 3 | 62.83 | 125.66 | 8 | 12 | 10 | 15 | 9 | 37.50 | 930.31 | 7.7 | 0.043 | 0.078 | 04101100C10 |
| 4 | 12.56637 | 1005.31 | 80 | 41 | 39 | 35.0 | 3 | 62.83 | 125.66 | 8 | 12 | 14 | 20 | 13 | 37.50 | 930.31 | 11.7 | 0.043 | 0.078 | 04101100CS0 |
| 4 | 12.56637 | 2010.62 | 160 | 41 | 39 | 35.0 | 3 | 62.83 | 125.66 | 16 | 12 | 10 | 15 | 9 | 37.50 | 1935.62 | 7.7 | 0.047 | 0.088 | 04101200C10 |
| 4 | 12.56637 | 2010.62 | 160 | 41 | 39 | 35.0 | 3 | 62.83 | 125.66 | 16 | 12 | 14 | 20 | 13 | 37.50 | 1935.62 | 11.7 | 0.047 | 0.088 | 04101200CS0 |
| 5 | 15.70796 | 1005.31 | 64 | 50 | 39 | 34.0 | 3 | 62.83 | 125.66 | 8 | 12 | 14 | 20 | 13 | 30.10 | 945.11 | 11.7 | 0.043 | 0.078 | 05101100C10 |
| 5 | 15.70796 | 2010.62 | 128 | 50 | 39 | 34.0 | 3 | 62.83 | 125.66 | 16 | 12 | 14 | 20 | 13 | 30.10 | 1950.42 | 11.7 | 0.047 | 0.088 | 05101200C10 |
| 6 | 18.84956 | 1017.88 | 54 | 60 | 49 | 43.0 | 3 | 63.62 | 127.23 | 8 | 16 | 18 | 26 | 17 | 31.40 | 955.08 | 15.7 | 0.043 | 0.078 | 06101100C10 |
| 6 | 18.84956 | 2035.75 | 108 | 60 | 49 | 43.0 | 3 | 63.62 | 127.23 | 16 | 16 | 18 | 26 | 17 | 31.40 | 1972.95 | 15.7 | 0.047 | 0.088 | 06101200C10 |
| 8 | 25.13274 | 1005.31 | 40 | 81 | 79 | 71.0 | 3 | 62.83 | 125.66 | 8 | 25 | 22 | 33 | 21 | 26.60 | 952.11 | 19.7 | 0.049 | 0.084 | 08101100C10 |
| 8 | 25.13274 | 2010.62 | 80 | 81 | 79 | 71.0 | 3 | 62.83 | 125.66 | 16 | 25 | 22 | 33 | 21 | 26.60 | 1957.42 | 19.7 | 0.053 | 0.095 | 08101200C10 |
| 10 | 31.41593 | 1005.31 | 32 | 100 | 99 | 89.0 | 3 | 62.83 | 125.66 | 8 | 32 | 33 | 48 | 32 | 125.66 | 753.99 | 19.7 | 0.049 | 0.084 | 10101100C10 |
| 12 | 37.69911 | 1017.88 | 27 | 120 | 120 | 108.0 | 3 | 63.62 | 127.23 | 8 | 40 | 39 | 58 | 38 | 127.23 | 763.42 | 19.7 | 0.059 | 0.090 | 12101100C10 |
