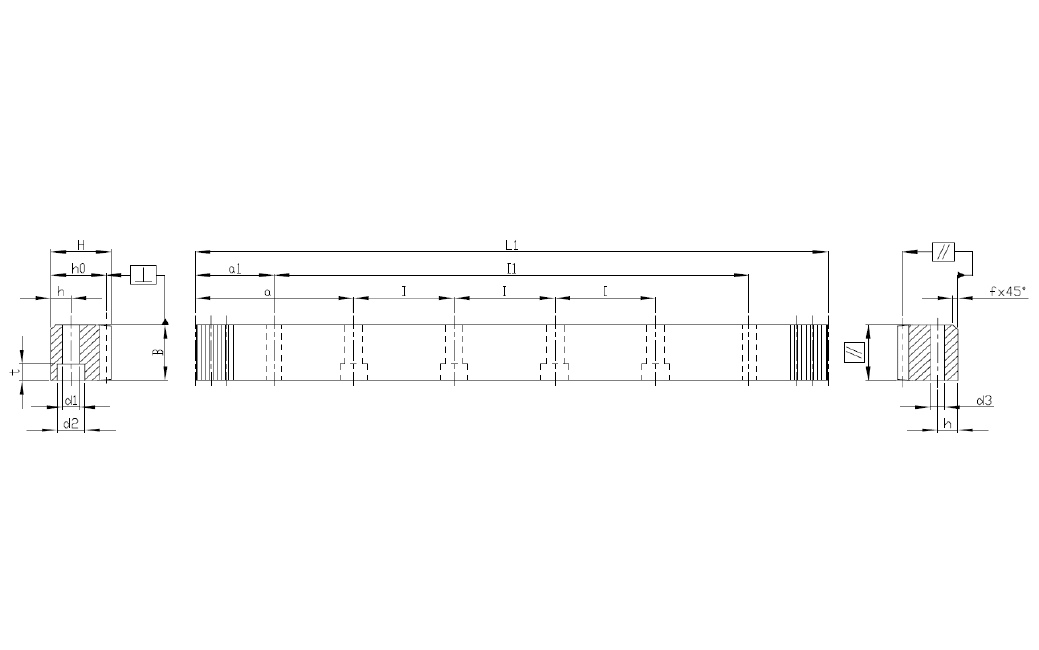

| 模数 | Pt | L1 | 齿数 | B | H | ho | f | a | l | 孔数 | h | d1 | d2 | t | al | ll | d3 | fp2 | fp3 | 订单代码 |
| 1 | 3.14159 | 502.66 | 160 | 15 | 15 | 14 | 2 | 62.85 | 125.66 | 4 | 6 | 5 | 8 | 5 | 31.3 | 440.06 | 5.7 | 0.021 | 0.08 | 01091050S10 |
| 1 | 3.14159 | 1005.31 | 320 | 15 | 15 | 14 | 2 | 62.85 | 125.66 | 8 | 6 | 5 | 8 | 5 | 31.3 | 942.71 | 5.7 | 0.023 | 0.092 | 01091100S10 |
| 1.5 | 4.71239 | 508.94 | 108 | 17 | 17 | 15.5 | 2 | 63.62 | 127.23 | 4 | 6 | 6 | 10 | 6 | 34.3 | 440.14 | 5.7 | 0.021 | 0.08 | 1J091050S10 |
| 1.5 | 4.71239 | 1017.88 | 216 | 17 | 17 | 15.5 | 2 | 63.62 | 127.23 | 8 | 6 | 6 | 10 | 6 | 34.3 | 949.08 | 5.7 | 0.023 | 0.092 | 1J091100S10 |
| 1.75 | 5.49779 | 500.30 | 91 | 20 | 20 | 18.3 | 2 | 62.55 | 125.07 | 4 | 8 | 7 | 11 | 7 | 31.3 | 437.7 | 5.7 | 0.021 | 0.08 | 1P091050S10 |
| 1.75 | 5.49779 | 1000.60 | 182 | 20 | 20 | 18.3 | 2 | 62.55 | 125.07 | 8 | 8 | 7 | 11 | 7 | 31.3 | 938 | 5.7 | 0.023 | 0.092 | 1P091100S10 |
| 2 | 6.28319 | 502.66 | 80 | 26 | 24 | 22 | 2 | 62.83 | 125.66 | 4 | 8 | 7 | 11 | 7 | 31.3 | 440.06 | 5.7 | 0.021 | 0.08 | 02091050S10 |
| 2 | 6.28319 | 1005.31 | 160 | 26 | 24 | 22 | 2 | 62.83 | 125.66 | 8 | 8 | 7 | 11 | 7 | 31.3 | 942.71 | 5.7 | 0.023 | 0.092 | 02091100S10 |
| 3 | 9.42478 | 508.94 | 54 | 31 | 29 | 26 | 2 | 63.62 | 127.23 | 4 | 9 | 10 | 15 | 9 | 34.3 | 440.14 | 7.7 | 0.023 | 0.088 | 03091050S10 |
| 3 | 9.42478 | 1017.88 | 108 | 31 | 29 | 26 | 2 | 63.62 | 127.23 | 8 | 9 | 10 | 15 | 9 | 34.3 | 949.08 | 7.7 | 0.025 | 0.101 | 03091100S10 |
| 3 | 9.42478 | 1526.81 | 162 | 31 | 29 | 26 | 2 | 63.62 | 127.23 | 12 | 9 | 10 | 15 | 9 | 34.3 | 1458.01 | 7.7 | 0.025 | 0.101 | 03091150S10 |
| 3 | 9.42478 | 2035.75 | 216 | 31 | 29 | 26 | 2 | 63.62 | 127.23 | 16 | 9 | 10 | 15 | 9 | 34.3 | 1966.95 | 7.7 | 0.027 | 0.114 | 03091200S10 |
| 3.183 | 10.00000 | 1000.00 | 100 | 30 | 30 | 26.82 | 2 | 62.5 | 125 | 2 | 11.5 | 10 | 15 | 9 | 35 | 930 | 7.7 | 0.025 | 0.095 | 3B091100S10 |
| 3.183 | 10.00000 | 1500.00 | 150 | 30 | 30 | 26.82 | 2 | 62.5 | 125 | 12 | 11.5 | 10 | 15 | 9 | 35 | 1430 | 7.7 | 0.027 | 0.109 | 3B091150S10 |
| 3.183 | 10.00000 | 2000.00 | 200 | 30 | 30 | 26.82 | 2 | 62.5 | 125 | 16 | 11.5 | 10 | 15 | 9 | 35 | 1930 | 7.7 | 0.027 | 0.109 | 3B091200S10 |
| 4 | 12.56637 | 502.66 | 40 | 41 | 39 | 35 | 3 | 62.83 | 125.66 | 4 | 12 | 10 | 15 | 9 | 37.5 | 427.66 | 7.7 | 0.029 | 0.123 | 04091050S10 |
| 4 | 12.56637 | 1005.31 | 80 | 41 | 39 | 35 | 3 | 62.83 | 125.66 | 8 | 12 | 10 | 15 | 9 | 37.5 | 930.31 | 7.7 | 0.027 | 0.109 | 04091100S10 |
| 4 | 12.56637 | 1507.96 | 120 | 41 | 39 | 35 | 3 | 62.83 | 125.66 | 12 | 12 | 10 | 15 | 9 | 37.5 | 1432.96 | 7.7 | 0.029 | 0.109 | 04091150S10 |
| 4 | 12.56637 | 2010.62 | 160 | 41 | 39 | 35 | 3 | 62.83 | 125.66 | 16 | 12 | 10 | 15 | 9 | 37.5 | 1935.62 | 7.7 | 0.025 | 0.123 | 04091200S10 |
| 4.5 | 14.13717 | 1003.74 | 71 | 50 | 50 | 45.5 | 3 | 62.72 | 125.47 | 8 | 15 | 14 | 20 | 13 | 31.4 | 940.94 | 11.7 | 0.027 | 0.109 | 4J091100S10 |
| 4.5 | 14.13717 | 2007.48 | 142 | 50 | 50 | 45.5 | 3 | 62.72 | 125.47 | 16 | 15 | 14 | 20 | 13 | 31.4 | 1944.68 | 11.7 | 0.029 | 0.123 | 4J091200S10 |
| 5 | 15.70796 | 502.66 | 32 | 50 | 39 | 34 | 3 | 62.83 | 125.66 | 4 | 12 | 14 | 20 | 13 | 30.1 | 442.46 | 11.7 | 0.025 | 0.095 | 05091050S10 |
| 5 | 15.70796 | 1005.31 | 64 | 50 | 39 | 34 | 3 | 62.83 | 125.66 | 8 | 12 | 14 | 20 | 13 | 30.1 | 945.11 | 11.7 | 0.027 | 0.109 | 05091100S10 |
| 5 | 15.70796 | 1507.96 | 96 | 50 | 39 | 34 | 3 | 62.83 | 125.66 | 12 | 12 | 14 | 20 | 13 | 30.1 | 1447.76 | 11.7 | 0.027 | 0.109 | 05091150S10 |
| 5 | 15.70796 | 2010.62 | 128 | 50 | 39 | 34 | 3 | 62.83 | 125.66 | 16 | 12 | 14 | 20 | 13 | 30.1 | 1950.42 | 11.7 | 0.029 | 0.123 | 05091200S10 |
| 6 | 18.84956 | 508.94 | 27 | 60 | 49 | 43 | 3 | 63.62 | 127.23 | 4 | 16 | 18 | 26 | 17 | 31.4 | 446.14 | 15.7 | 0.025 | 0.095 | 06091050S10 |
| 6 | 18.84956 | 1017.88 | 54 | 60 | 49 | 43 | 3 | 63.62 | 127.23 | 8 | 16 | 18 | 26 | 17 | 31.4 | 955.08 | 15.7 | 0.027 | 0.109 | 06091100S10 |
| 6 | 18.84956 | 2035.75 | 108 | 60 | 49 | 43 | 3 | 63.62 | 127.23 | 16 | 16 | 18 | 26 | 17 | 31.4 | 1972.95 | 15.7 | 0.029 | 0.123 | 06091200S10 |
