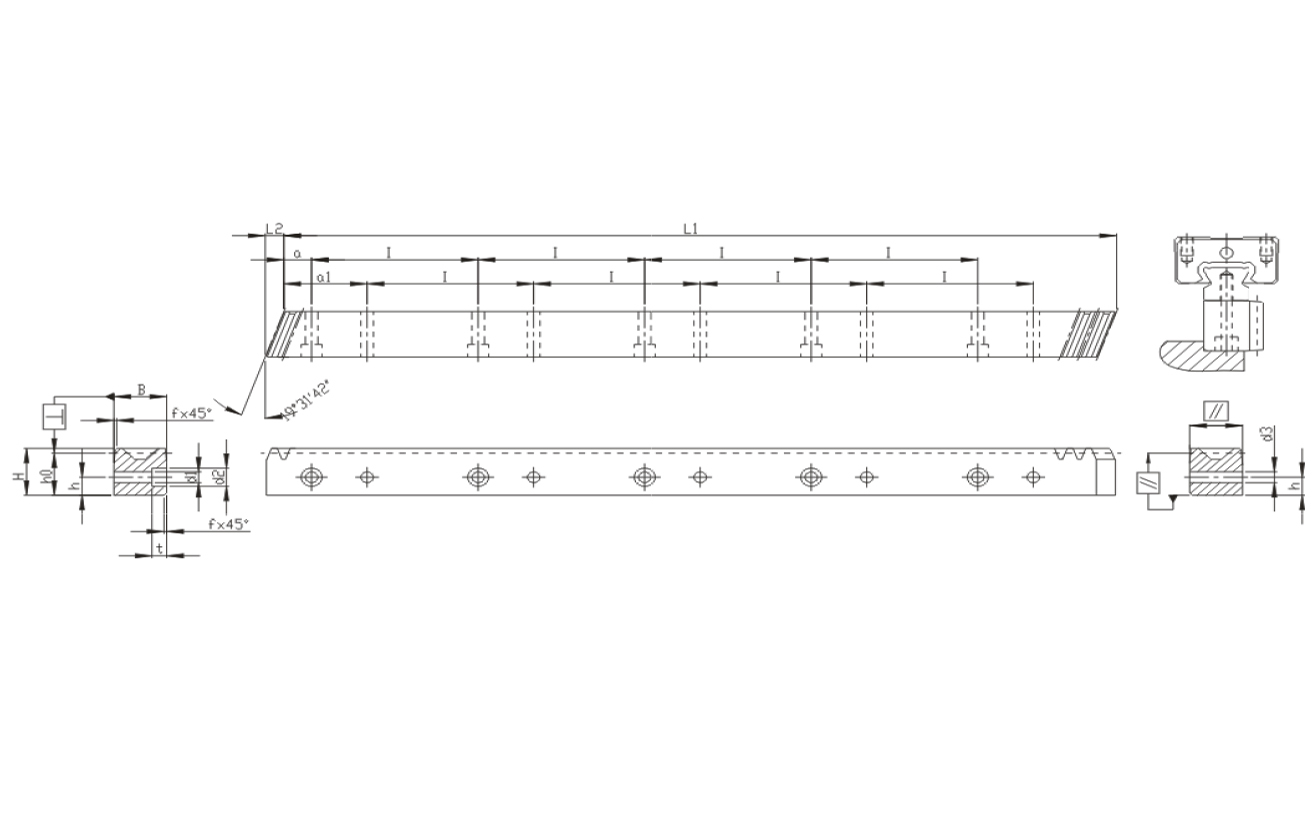

| 模数 | Pt | L1 | L2 | 齿数 | B | H | ho | f | a | l | 孔数 | h | d1 | d2 | t | al | d3 | fp2 | fp3 | 订单代码 |
| 2 | 6.66668 | 480 | 6.7 | 72 | 19 | 19.50 | 17.50 | 1 | 10 | 60 | 8 | 7.5 | 4.5 | 7.5 | 5.3 | 30 | 4.5 | 0.008 | 0.029 | 0206R050C10A1 |
| 2 | 6.66668 | 960 | 6.7 | 144 | 19 | 19.50 | 17.50 | 1 | 10 | 60 | 16 | 7.5 | 4.5 | 7.5 | 5.3 | 30 | 4.5 | 0.008 | 0.034 | 0206R100C10A1 |
| 2 | 6.66668 | 480 | 8.5 | 72 | 24 | 24.50 | 22.50 | 1 | 10 | 60 | 8 | 10.0 | 6.0 | 9.5 | 8.5 | 30 | 6.0 | 0.008 | 0.029 | 0206R050CS0A1 |
| 2 | 6.66668 | 960 | 8.5 | 144 | 24 | 24.50 | 22.50 | 1 | 10 | 60 | 16 | 10.0 | 6.0 | 9.5 | 8.5 | 30 | 6.0 | 0.008 | 0.034 | 0206R100CSA1 |
| 3 | 10.00002 | 480 | 10.3 | 48 | 29 | 29.75 | 26.75 | 2 | 10 | 60 | 8 | 11.5 | 7.0 | 11.0 | 9.0 | 30 | 7.0 | 0.008 | 0.032 | 0306R050C10A1 |
| 3 | 10.00002 | 960 | 10.3 | 96 | 29 | 29.75 | 26.75 | 2 | 10 | 60 | 16 | 11.5 | 7.0 | 11.0 | 9.0 | 30 | 7.0 | 0.009 | 0.037 | 0306R100C10A1 |
| 4 | 13.33335 | 480 | 13.8 | 36 | 39 | 39.75 | 35.75 | 2 | 20 | 80 | 6 | 14.0 | 10.0 | 15.00 | 9.0 | 40 | 10.0 | 0.009 | 0.034 | 0406MR050C10A1 |
| 4 | 13.33335 | 960 | 13.8 | 72 | 39 | 39.75 | 35.75 | 2 | 20 | 80 | 12 | 14.0 | 10.0 | 15.00 | 9.0 | 40 | 10.0 | 0.010 | 0.040 | 0406MR100C10A1 |
| 4 | 13.33335 | 480 | 13.8 | 36 | 39 | 48.75 | 44.75 | 2 | 20 | 80 | 6 | 17.0 | 10.0 | 15.00 | 9.0 | 40 | 10.0 | 0.009 | 0.034 | 0406R050CS0A1 |
| 4 | 13.33335 | 960 | 13.8 | 72 | 39 | 48.08 | 44.75 | 2 | 20 | 80 | 12 | 17.0 | 10.0 | 15.00 | 9.0 | 40 | 10.0 | 0.010 | 0.040 | 0406R100CS0A1 |
| 4 | 13.33335 | 840 | 17.4 | 63 | 49 | 58.00 | 54.00 | 2 | 30 | 105 | 8 | 22.5 | 14.0 | 20.0 | 13.0 | 60 | 14.0 | 0.009 | 0.034 | 0406R084CS0A1 |
