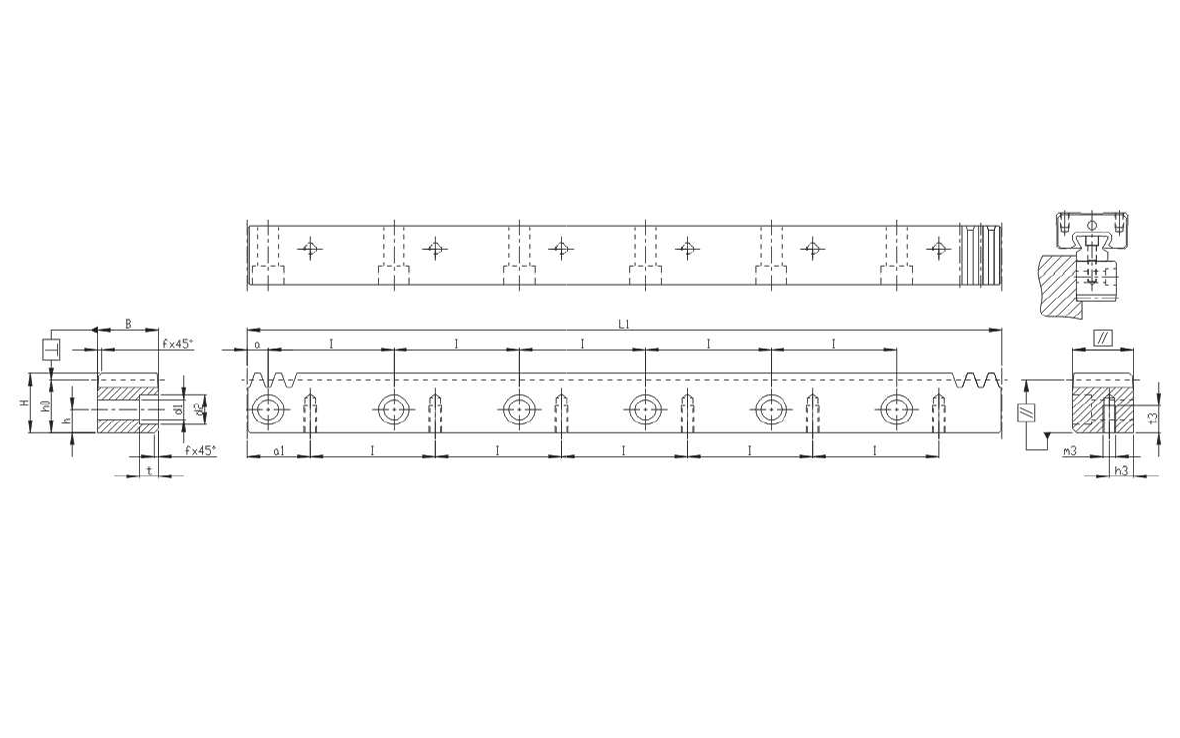

| 模数 | Pt | L1 | 齿数 | B | H | ho | f | a | l | 孔数 | h | d1 | d2 | t | al | m3 | h3 | t3 | fp2 | fp3 | 订单代码 |
| 1.591 | 5.00 | 960 | 192 | 19 | 19.50 | 17.91 | 1 | 10 | 60 | 16 | 7.5 | 4.5 | 7.5 | 5.3 | 30 | M4 | 7.5 | 8.0 | 0.008 | 0.034 | 1K061100C10A2 |
| 1.591 | 5.00 | 960 | 192 | 24 | 24.50 | 22.91 | 1 | 10 | 60 | 16 | 10.0 | 6.0 | 9.5 | 8.5 | 30 | M5 | 10.0 | 11.0 | 0.008 | 0.034 | 1K061100CS0A2 |
| 3.183 | 10.00 | 960 | 96 | 29 | 29.75 | 36.57 | 2 | 10 | 60 | 16 | 11.5 | 7.0 | 11 | 9.0 | 30 | M6 | 11.5 | 13.5 | 0.009 | 0.037 | 3B061100C10A2 |
| 4.244 | 13.33 | 960 | 72 | 39 | 39.75 | 35.51 | 2 | 20 | 80 | 12 | 14.0 | 10.0 | 15 | 9.0 | 40 | M8 | 14.0 | 16.0 | 0.010 | 0.040 | 4D061100C10A2 |
