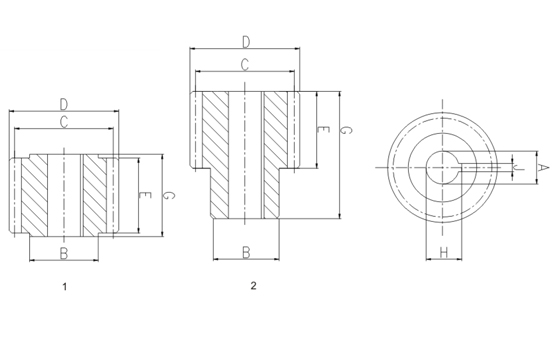

| 产品型号 | 图号 | 齿数 | 内径 | 毂径 | 节圆直径 | 外径 | 齿幅 | 总长度 | J | H |
| AH7 | B | C | D | E | G | |||||
| SG030-18-25 | 1 | 18 | 25 | 36 | 54 | 60 | 28 | 30 | 8 | 28.3 |
| SG030-20-25 | 1 | 20 | 25 | 36 | 60 | 66 | 28 | 30 | 8 | 28.3 |
| SG030-20-35 | 1 | 20 | 35 | 48 | 60 | 66 | 28 | 30 | 10 | 38.3 |
| SG030-22-22-T | 2 | 22 | 22 | 36 | 66 | 72 | 28 | 56 | 6 | 24.8 |
| SG030-22-25-T | 2 | 22 | 25 | 44 | 66 | 72 | 28 | 60 | 8 | 28.3 |
| SG030-22-30 | 1 | 22 | 30 | 45 | 66 | 72 | 28 | 30 | 8 | 33.3 |
| SG030-22-32-T | 2 | 22 | 32 | 55 | 66 | 72 | 28 | 65 | 10 | 35.3 |
| SG030-25-25 | 1 | 25 | 25 | 36 | 75 | 81 | 28 | 30 | 8 | 28.3 |
| SG030-25-40-T | 2 | 25 | 40 | 62 | 75 | 81 | 28 | 65 | 12 | 43.3 |
| SG030-25-45 | 1 | 25 | 45 | 58 | 75 | 81 | 28 | 30 | 14 | 48.8 |
| SG030-28-22-T | 2 | 28 | 22 | 36 | 84 | 90 | 28 | 56 | 6 | 24.8 |
| SG030-28-30 | 1 | 28 | 30 | 45 | 84 | 90 | 28 | 30 | 8 | 33.3 |
| SG030-28-32-T | 2 | 28 | 32 | 55 | 84 | 90 | 28 | 65 | 10 | 35.3 |
| SG030-28-35-T | 2 | 28 | 35 | 55 | 84 | 90 | 28 | 65 | 10 | 38.3 |
| SG030-28-45-T | 2 | 28 | 45 | 68 | 84 | 90 | 28 | 65 | 14 | 48.8 |
| SG030-32-25 | 1 | 32 | 25 | 36 | 96 | 102 | 28 | 30 | 8 | 28.3 |
| SG030-32-40-T | 2 | 32 | 40 | 62 | 96 | 102 | 28 | 65 | 12 | 43.3 |
| SG030-32-45 | 1 | 32 | 45 | 58 | 96 | 102 | 28 | 30 | 14 | 48.8 |
| SG030-36-35 | 1 | 36 | 35 | 48 | 108 | 114 | 28 | 30 | 10 | 38.3 |
| SG030-36-45-T | 2 | 36 | 45 | 68 | 108 | 114 | 28 | 65 | 14 | 48.8 |
