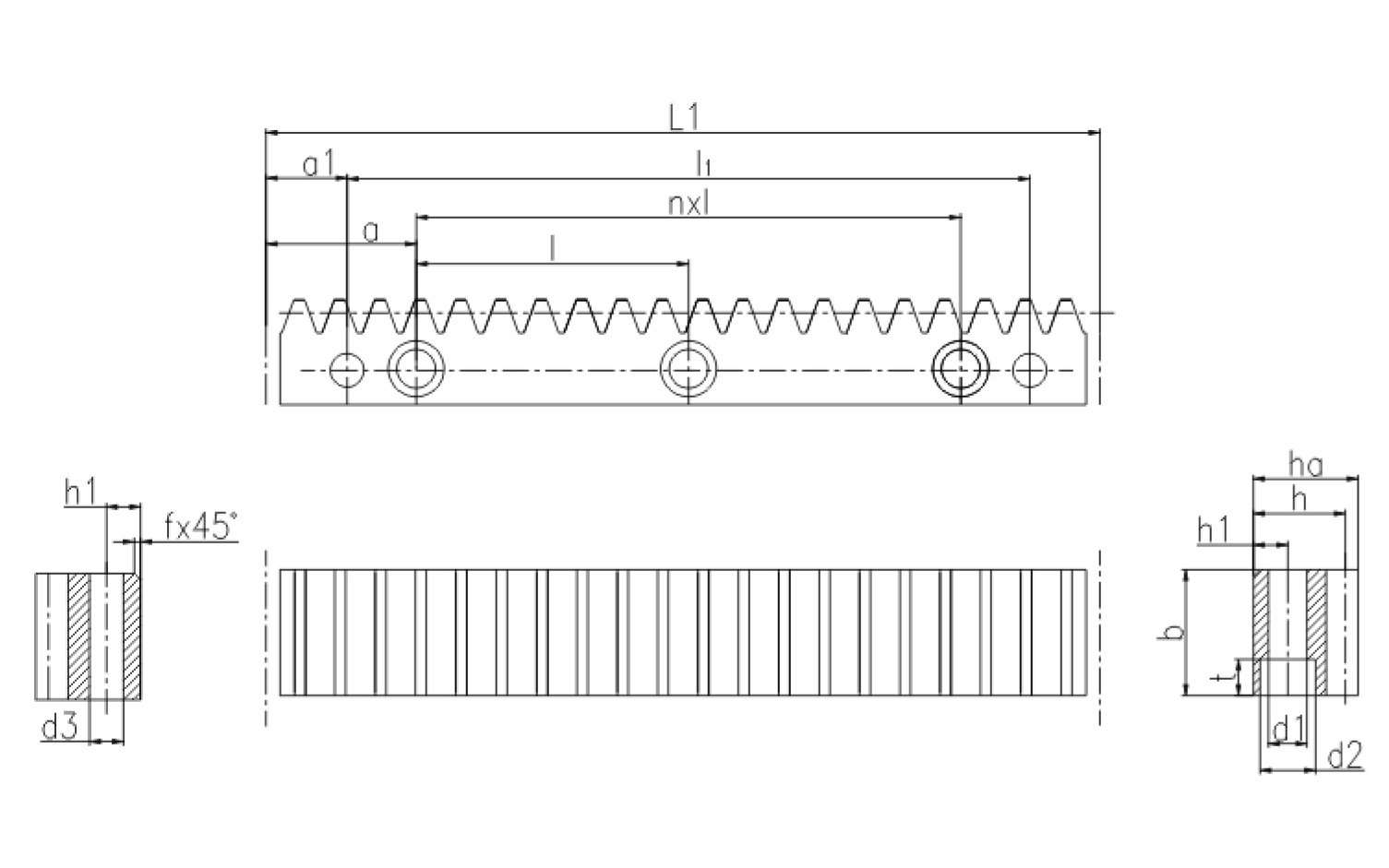

| 型号Code | 模数Module | L | 齿数Tooth No. | b | ha | h | a | l | n | h1 | d1 | d2 | t | a1 | l1 | d3 |
| 015S06-500C | 1.5 | 499.51 | 106 | 19 | 19 | 17.5 | 62.44 | 124.88 | 4 | 8 | 7 | 11 | 7 | 29 | 441.5 | 5.7 |
| 015S06-1000C | 1.5 | 999.03 | 212 | 19 | 19 | 17.5 | 62.44 | 124.88 | 8 | 8 | 7 | 11 | 7 | 29 | 941 | 5.7 |
| 020S06-500C | 2 | 502.65 | 80 | 24 | 24 | 22 | 62.83 | 125.66 | 4 | 8 | 7 | 11 | 7 | 31.3 | 440.1 | 5.7 |
| 020S06-1000C | 2 | 1005.31 | 160 | 24 | 24 | 22 | 62.83 | 125.66 | 8 | 8 | 7 | 11 | 7 | 31.3 | 942.7 | 5.7 |
| 030S06-500C | 3 | 508.94 | 54 | 29 | 29 | 26 | 63.62 | 127.23 | 4 | 9 | 10 | 15 | 9 | 34.4 | 440.1 | 7.7 |
| 030S06-1000C | 3 | 1017.88 | 108 | 29 | 29 | 26 | 63.62 | 127.23 | 8 | 9 | 10 | 15 | 9 | 34.4 | 949.1 | 7.7 |
| 040S06-500C | 4 | 502.65 | 40 | 39 | 39 | 35 | 62.83 | 125.66 | 4 | 12 | 10 | 15 | 9 | 37.5 | 427.7 | 7.7 |
| 040S06-1000C | 4 | 1005.31 | 80 | 39 | 39 | 35 | 62.83 | 125.66 | 8 | 12 | 10 | 15 | 9 | 37.5 | 930.3 | 7.7 |
| 050S06-500C | 5 | 502.65 | 32 | 49 | 39 | 34 | 62.83 | 125.66 | 4 | 12 | 14 | 20 | 13 | 30.1 | 442.4 | 11.7 |
| 050S06-1000C | 5 | 1005.31 | 64 | 49 | 39 | 34 | 68.83 | 125.66 | 8 | 12 | 14 | 20 | 13 | 30.1 | 945 | 11.7 |
| 060S06-500C | 6 | 508.94 | 27 | 59 | 49 | 43 | 63.62 | 127.23 | 4 | 16 | 18 | 26 | 17 | 31.4 | 446.1 | 15.7 |
| 060S06-1000C | 6 | 1017.88 | 54 | 59 | 49 | 43 | 63.62 | 127.23 | 8 | 16 | 18 | 26 | 17 | 31.4 | 955 | 15.7 |
| 080S06-500C | 8 | 502.65 | 20 | 79 | 79 | 71 | 62.83 | 125.66 | 4 | 25 | 22 | 33 | 21 | 26.6 | 449.5 | 19.7 |
| 080S06-1000C | 8 | 1005.31 | 40 | 79 | 79 | 71 | 62.83 | 125.66 | 8 | 25 | 22 | 33 | 21 | 26.6 | 952 | 19.7 |
| 100S06-1000C | 10 | 1005.31 | 32 | 99 | 99 | 89 | 62.83 | 125.66 | 8 | 32 | 33 | 48 | 32 | 125.67 | 753.96 | 19.7 |
